DL4007 General Purpose Schottky Diode / Silicon Rectifier Diode Sod80 4007 1n4007
Product Details
| Voltage - DC Reverse (Vr) (Max) | 1000V | Current - Average Rectified (Io) | 1A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A | Speed | Standard Recovery >500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 5µA @ 1000V | Package / Case | DO-213AB, MELF (Glass) |
| Highlight | general purpose schottky diode,high power rectifier diode |
||
Product Description
GENERAL PURPOSE RECTIFIER DIODE
A rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification, since it "straightens" the direction of current.

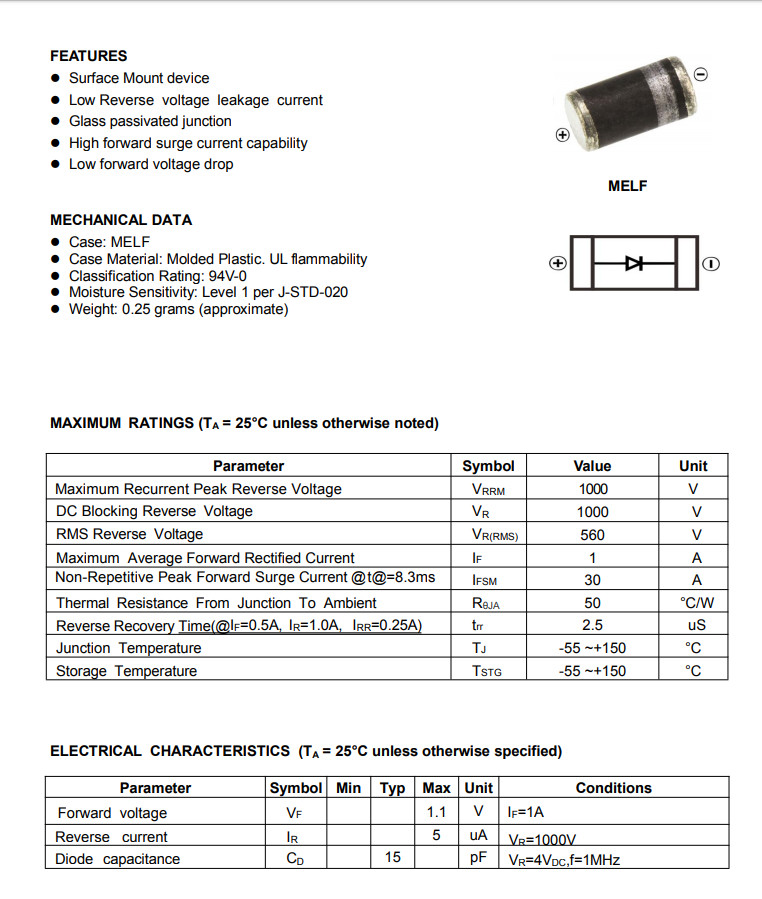

FEATURES
l Surface Mount device
l Low Reverse voltage leakage current
l Glass passivated junction
l High forward surge current capability
l Low forward voltage drop

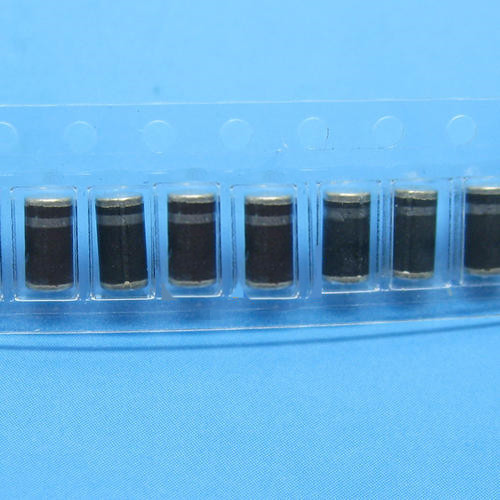

MELF
MECHANICAL DATA
l Case: MELF
l Case Material: Molded Plastic. UL flammability
l Classification Rating: 94V-0
l Moisture Sensitivity: Level 1 per J-STD-020
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 5µA @ 1000V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF (Glass) |
| Supplier Device Package | MELF |
