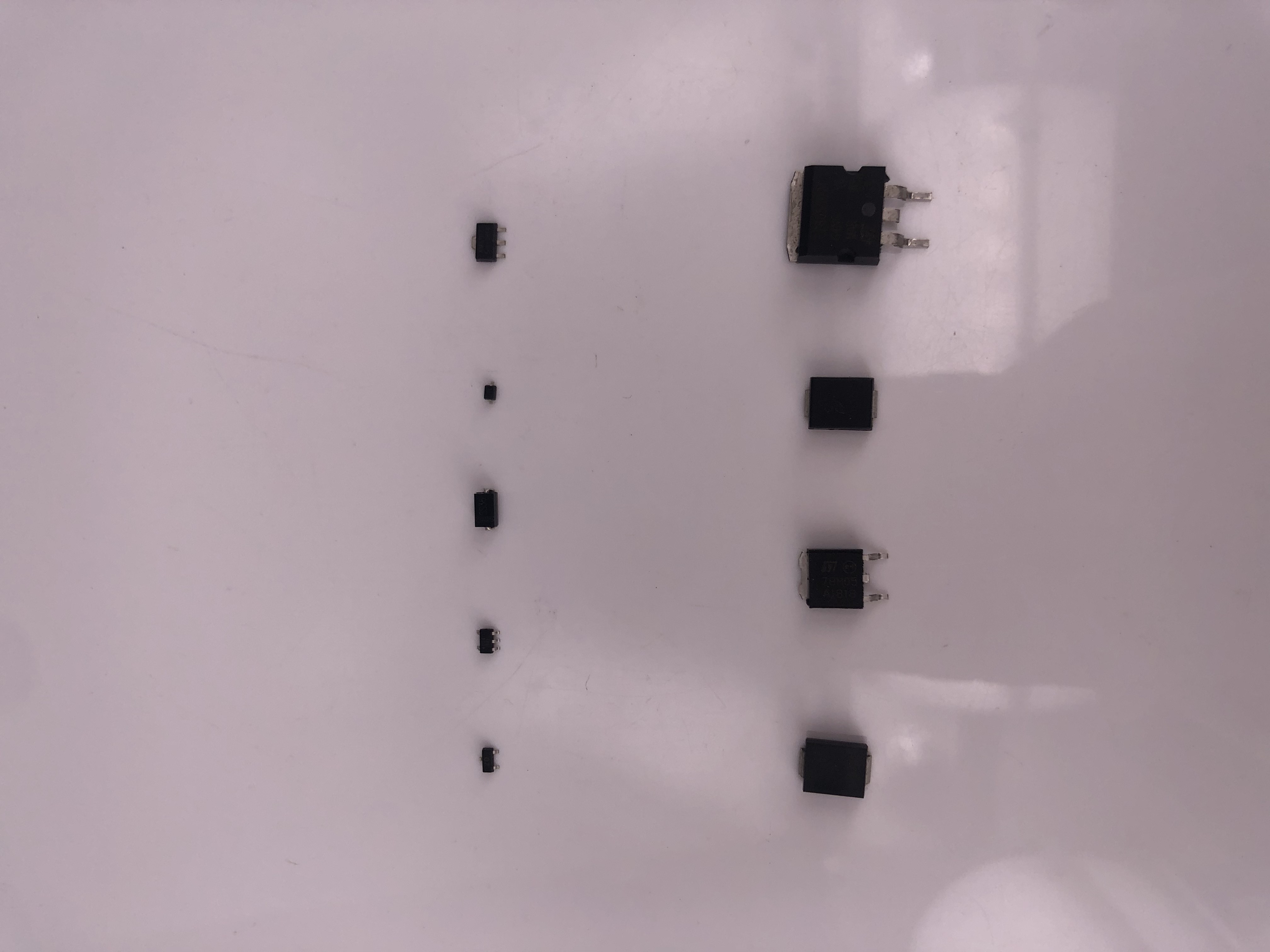

S1M S1MF S1MBF S1ML High Power Rectifier Diode / Surface Mount Rectifier Diode
| Place of Origin | CHINA |
|---|---|
| Brand Name | NXP/LRC/FSC/ON/MCC/DIODE/Thinkchip |
| Model Number | S1M S1MF SM1BF S1ML |
| Minimum Order Quantity | 100PCS |
| Price | negotiable |
| Packaging Details | Tape & Reel (TR) / Cut Tape (CT) |
| Delivery Time | 1-2 working days |
| Payment Terms | T/T, Western Union,paypal,MoneyGram |
| Supply Ability | 9,900,000 pcs |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage - DC Reverse (Vr) (Max) | 1000V | Current - Average Rectified (Io) | 1A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If | 1.15V @ 2A | Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2µs | Current - Reverse Leakage @ Vr | 1µA @ 1000V |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz | Operating Temperature - Junction | -65°C ~ 150°C |
| High Light | general purpose schottky diode,high power rectifier diode |
||
Product Description
GENERAL PURPOSE RECTIFIER DIODE
A rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification, since it "straightens" the direction of current.
FEATURES
l Surface Mount device
l Low Reverse voltage leakage current
l Glass passivated junction
l High forward surge current capability
l Low forward voltage drop
SMBF SMA SMAF SOD-123FL
MECHANICAL DATA
l Case: SMBF
l Case Material: Molded Plastic. UL flammability
l Classification Rating: 94V-0
l Moisture Sensitivity: Level 1 per J-STD-020
l Weight: 0.057 grams (approximate)
