S2M S2MF S2MBF S2ML General Purpose Rectifier High Power Surface Mounted
| Place of Origin | CHINA |
|---|---|
| Brand Name | NXP/LRC/FSC/ON/MCC/DIODE/Thinkchip |
| Model Number | S2M S2MF SM2BF S2ML |
| Minimum Order Quantity | 100PCS |
| Price | negotiable |
| Packaging Details | Tape & Reel (TR) / Cut Tape (CT) |
| Delivery Time | 1-2 working days |
| Payment Terms | T/T, Western Union,paypal,MoneyGram |
| Supply Ability | 9,900,000 pcs |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage - DC Reverse (Vr) (Max) | 1000V | Current - Average Rectified (Io) | 2A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If | 1.15V @ 2A | Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2µs | Current - Reverse Leakage @ Vr | 1µA @ 1000V |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz | Operating Temperature - Junction | -65°C ~ 150°C |
| High Light | high power rectifier diode,surface mount rectifier diode |
||
Product Description

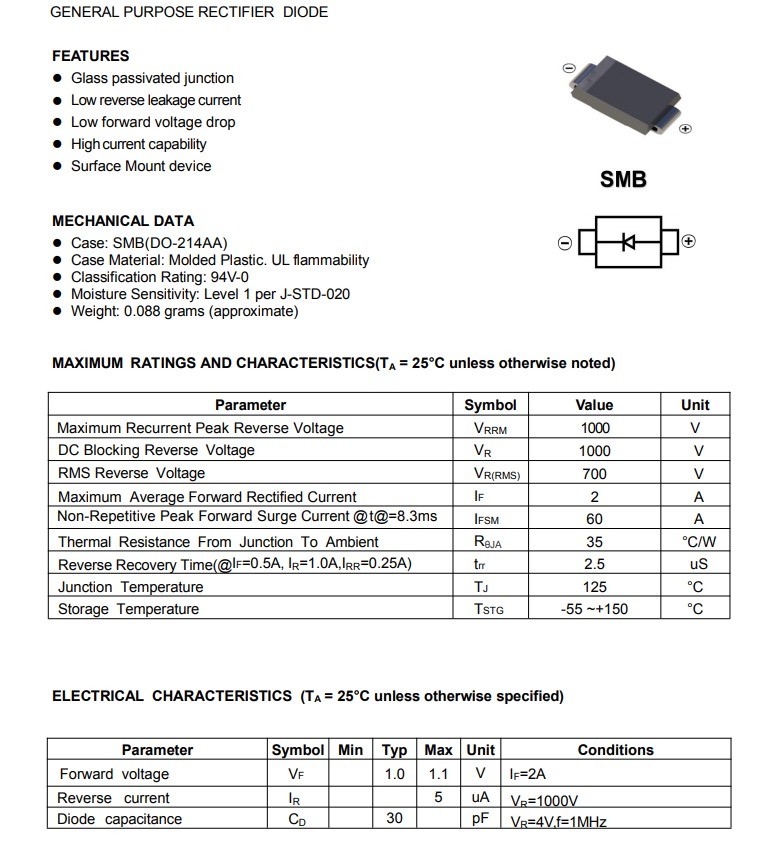

GENERAL PURPOSE RECTIFIER DIODE
A rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification, since it "straightens" the direction of current.

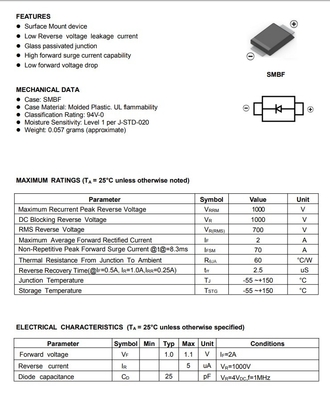

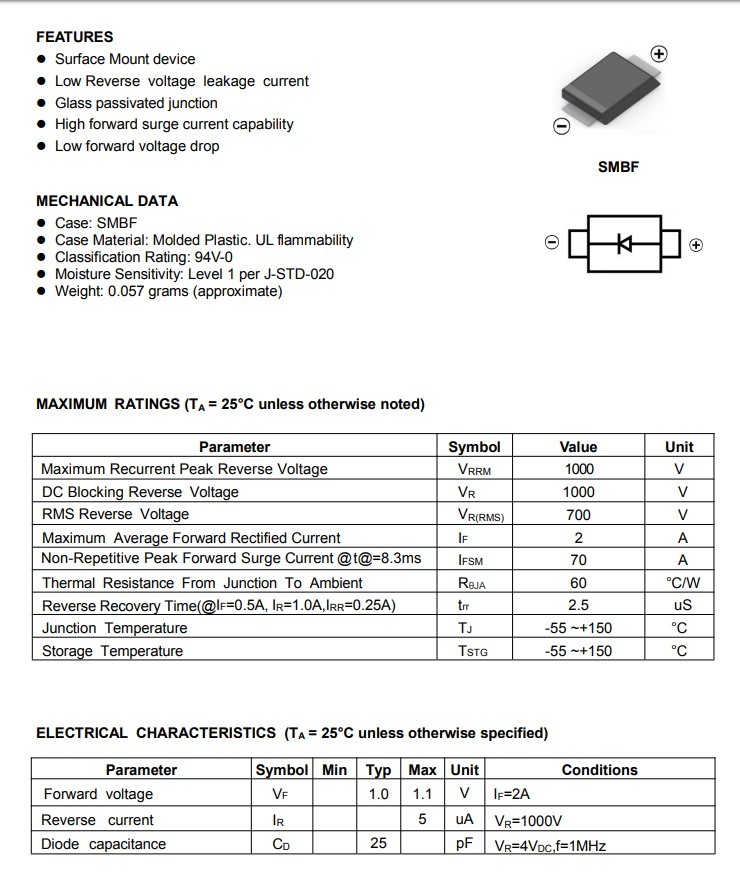

FEATURES
l Surface Mount device
l Low Reverse voltage leakage current
l Glass passivated junction
l High forward surge current capability
l Low forward voltage drop
SMBF SMA SMAF SOD-123FL
MECHANICAL DATA
l Case: SMBF
l Case Material: Molded Plastic. UL flammability
l Classification Rating: 94V-0
l Moisture Sensitivity: Level 1 per J-STD-020
l Weight: 0.057 grams (approximate)
