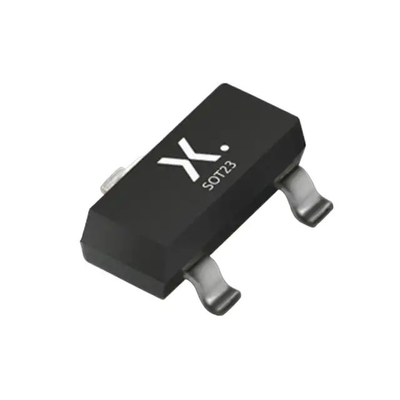

PESD24V 70V Clamp 3A ESD Transient Voltage Suppressor Ipp SOT SOD SSOP

  • PESD24V 70V Clamp 3A ESD Transient Voltage Suppressor Ipp SOT SOD SSOP
Place of Origin Malaysia / CHINA
Brand Name Nexperia/LRC/ST/THINKCHIP
Model Number PESD24VS1UA PESD24VS1UB PESD24VS1ULD PESD24VS1UL PESD24VS2UAT PESD24VS2UQ PESD24VS2UT PESD24VS4UD PESD24VS5UD
Minimum Order Quantity 3000PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage - Reverse Standoff (Typ) 24 (Max) Voltage - Breakdown (Min) 25.6V
Voltage - Clamping (Max) @ Ipp 70V Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power - Peak Pulse 160W Operating Temperature -65°C ~ 150°C
High Light

esd tvs diode

,

esd suppressor diode
Leave a Message
Product Description

PESD24V 70V Clamp 3A (8/20µs) Ipp SOT SOD SSOP ESD Quadruple bidirectional ESD transient voltage suppressor



WHAT IS ESD Diodes?


ESD represents the Electrostatic Discharge that "English electrostatic discharge" means. ESD is formed since the middle of this century to produce research and attenuation of electrostatic, electrostatic discharge model, electrostatic discharge effects such as current heat (spark) effect (such as fire and explosion caused by static electricity) and electromagnetic effects (such as electromagnetic interference) and other disciplines. In recent years, with the extensive application and the electromagnetic environment and the development of science and technology, microelectronic technology and more complex, electromagnetic fields such as electromagnetic interference effects on the electrostatic discharge (EMI) and electromagnetic compatibility (EMC) issues more seriously.
Our ESD protection device is mainly composed of TVS ARRAY, a device by different package. It has the merits of small volume, low junction capacitance, fast response etc...





  1. PESD24VS1UA
  2. PESD24VS1UB
  3. PESD24VS1ULD
  4. PESD24VS1UL
  5. PESD24VS2UAT
  6. PESD24VS2UQ
  7. PESD24VS2UT
  8. PESD24VS4UD
  9. PESD24VS5UD









Manufacturer Nexperia USA Inc.
Series -
Packaging Tape & Reel (TR)
Part Status Active
Type Zener
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 26.5V
Voltage - Clamping (Max) @ Ipp 70V
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power - Peak Pulse 160W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 23pF @ 1MHz
Operating Temperature -65°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB
Base Part Number PESD*S2U





Service

G-Resource Electronics Co., Ltd, as the preferred supplier of the world well-known enterprises, take strict quality control as the key to our success. G-Resource Electronics Co., Ltd has all along been committed to the "Zero Defect" quality management system and we have established a comprehensive quality management system, from supply chain management to single transaction monitoring, from suppliers grading system to quality inspection procedures. At the same time, we also has the excellent services of electronics field : Spot Buy Service; PPV Projects;BOM Kitting;Excess Liquidation;Value-Add Service;All-in-One Package Service. And also, we ensure the fast delivery of all our customers,we not only has closed cooperation relationship with international express :UPS,DHL,FEDEX,TNT ect but also has the great support of District logistics dedicated line.We confident that you will be satisfy with us once you start to cooperate with us. We stay here and waiting you to be our partner!
Contact us if you need more detail or quotation of these item.
Pls kindly check the below part number of same series.



Type number Package version Package name Size (mm) No of protected lines Configuration VRWM (V) Cd [typ] (pF) Cd [max] (pF) VESD IEC61000-4-2 (kV) IRM [max] (µA)
PESD24VS1UA SOD323 SOD323 1.7 x 1.25 x 0.95 1 Unidirectional 24 23 50 23 0.05
PESD24VS1UB SOD523 SC-79 1.2 x 0.8 x 0.6 1 Unidirectional 24 23 50 23 0.05
PESD24VS1ULD SOD882D DFN1006D-2 1 x 0.6 x 0.4 1 Unidirectional 24 23 50 23 0.05
PESD24VS1UL SOD882 DFN1006-2 1.0 x 0.6 x 0.5 1 Unidirectional 24 23 50 23 0.05
PESD24VS2UAT SOT23 SOT23 2.9 x 1.3 x 1 2 Unidirectional 24 23 50 23 0.05
PESD24VS2UQ SOT663 SOT663 1.6 x 1.2 x 0.55 2 Unidirectional 24 23 50 23 0.05
PESD24VS2UT SOT23 SOT23 2.9 x 1.3 x 1 2 Unidirectional 24 23 50 23 1
PESD24VS4UD SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 4 Unidirectional 24 40 70 23 0.015
PESD24VS5UD SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 5 Unidirectional 24 45 70 23 0.015
