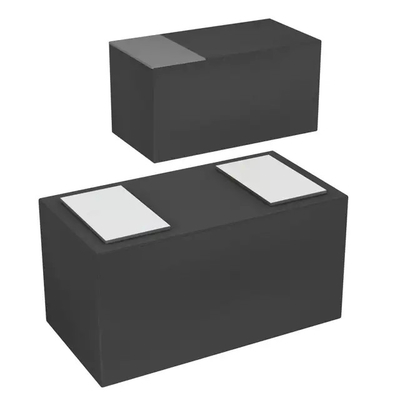

PESD5V0 10.5V ESD Protection Diode Clamp 1.2A Ipp Tvs Di SOT SOD SSOP Quadruple Bidirectional

  • PESD5V0 10.5V ESD Protection Diode Clamp 1.2A Ipp Tvs Di SOT SOD SSOP Quadruple Bidirectional
Place of Origin Malaysia / CHINA
Brand Name Nexperia/LRC/ST/THINKCHIP
Model Number PESD5V0L1USF PESD5V0S1BSF PESD5V0S1USF PESD5V0S4UF PESD5V0S1BA PESD5V0S1BB PESD5V0S1BL PESD5V0S1BLD PESD5V0S1UA PESD5V0S1UB PESD5V0S1UJ PESD5V0S1ULD PESD5V0S2BQA PESD5V0S1UL PESD5V0S2UAT PESD5V0S2UQ PESD5V0S4UD PESD5V0S5UD
Minimum Order Quantity 3000PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage - Reverse Standoff (Typ) 5V (Max) Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 10.5V Current - Peak Pulse (10/1000µs) 1.2A (8/20µs)
Power - Peak Pulse 11W Operating Temperature -65°C ~ 150°C
High Light

esd tvs diode

,

tvs esd diode
Leave a Message
Product Description

PESD5V0 10.5V Clamp 1.2A (8/20µs) Ipp Tvs Di SOT SOD SSOP ESD Quadruple bidirectional ESD transient voltage suppressor



WHAT IS ESD Diodes?


ESD represents the Electrostatic Discharge that "English electrostatic discharge" means. ESD is formed since the middle of this century to produce research and attenuation of electrostatic, electrostatic discharge model, electrostatic discharge effects such as current heat (spark) effect (such as fire and explosion caused by static electricity) and electromagnetic effects (such as electromagnetic interference) and other disciplines. In recent years, with the extensive application and the electromagnetic environment and the development of science and technology, microelectronic technology and more complex, electromagnetic fields such as electromagnetic interference effects on the electrostatic discharge (EMI) and electromagnetic compatibility (EMC) issues more seriously.
Our ESD protection device is mainly composed of TVS ARRAY, a device by different package. It has the merits of small volume, low junction capacitance, fast response etc...



  1. PESD5V0L1USF
  2. PESD5V0S1BSF
  3. PESD5V0S1USF
  4. PESD5V0S4UF
  5. PESD5V0S1BA
  6. PESD5V0S1BB
  7. PESD5V0S1BL
  8. PESD5V0S1BLD
  9. PESD5V0S1UA
  10. PESD5V0S1UB
  11. PESD5V0S1UJ
  12. PESD5V0S1ULD
  13. PESD5V0S2BQA
  14. PESD5V0S1UL
  15. PESD5V0S2UAT
  16. PESD5V0S2UQ
  17. PESD5V0S4UD
  18. PESD5V0S5UD



Manufacturer Nexperia USA Inc.
Series -
Packaging Tape & Reel (TR)
Part Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 10.5V
Current - Peak Pulse (10/1000µs) 1.2A (8/20µs)
Power - Peak Pulse 11W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 12pF @ 1MHz
Operating Temperature -55°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Base Part Number PESD*L1U







Service

G-Resource Electronics Co., Ltd, as the preferred supplier of the world well-known enterprises, take strict quality control as the key to our success. G-Resource Electronics Co., Ltd has all along been committed to the "Zero Defect" quality management system and we have established a comprehensive quality management system, from supply chain management to single transaction monitoring, from suppliers grading system to quality inspection procedures. At the same time, we also has the excellent services of electronics field : Spot Buy Service; PPV Projects;BOM Kitting;Excess Liquidation;Value-Add Service;All-in-One Package Service. And also, we ensure the fast delivery of all our customers,we not only has closed cooperation relationship with international express :UPS,DHL,FEDEX,TNT ect but also has the great support of District logistics dedicated line.We confident that you will be satisfy with us once you start to cooperate with us. We stay here and waiting you to be our partner!
Contact us if you need more detail or quotation of these item.
Pls kindly check the below part number of same series.



Type number Package version Package name Size (mm) No of protected lines Configuration VRWM (V) Cd [typ] (pF) Cd [max] (pF) VESD IEC61000-4-2 (kV) IRM [max] (µA)
PESD5V0L1USF SOD962 DSN0603-2 0.6 x 0.3 x 0.3 1 Unidirectional 5.5 12 15.4 30 0.1
PESD5V0S1BSF SOD962-2 DSN0603-2 0.6 x 0.3 x 0.3 1 Bidirectional 5.5 35 45 30 0.1
PESD5V0S1USF SOD962 DSN0603-2 0.6 x 0.3 x 0.3 1 Unidirectional 5 35 42 30 0.1
PESD5V0S4UF SOT886 XSON6 1.45 x 1 x 0.5 4 Unidirectional 5 85 220 30 0.1
PESD5V0S1BA SOD323 SOD323 1.7 x 1.25 x 0.95 1 Bidirectional 5 35 45 30 0.1
PESD5V0S1BB SOD523 SC-79 1.2 x 0.8 x 0.6 1 Bidirectional 5 35 45 30 0.1
PESD5V0S1BL SOD882 DFN1006-2 1.0 x 0.6 x 0.5 1 Bidirectional 5 35 45 30 0.1
PESD5V0S1BLD SOD882D DFN1006D-2 1 x 0.6 x 0.4 1 Bidirectional 5 35 45 30 0.1
PESD5V0S1UA SOD323 SOD323 1.7 x 1.25 x 0.95 1 Unidirectional 5 480 530 30 4
PESD5V0S1UB SOD523 SC-79 1.2 x 0.8 x 0.6 1 Unidirectional 5 152 200 30 1
PESD5V0S1UJ SOD323F SC-90 1.7 x 1.25 x 0.7 1 Unidirectional 5 480 530 30 4
PESD5V0S1ULD SOD882D DFN1006D-2 1 x 0.6 x 0.4 1 Unidirectional 5 152 200 30 1
PESD5V0S2BQA SOT1215 DFN1010D-3 1.1 x 1 x 0.37 2 Bidirectional 5     30
PESD5V0S1UL SOD882 DFN1006-2 1.0 x 0.6 x 0.5 1 Unidirectional 5 152 200 30 1
PESD5V0S2UAT SOT23 SOT23 2.9 x 1.3 x 1 2 Unidirectional 5 152 200 30 1
PESD5V0S2UQ SOT663 SOT663 1.6 x 1.2 x 0.55 2 Unidirectional 5 150 215 30 0.3
PESD5V0S4UD SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 4 Unidirectional 5 165 220 30 0.2
PESD5V0S5UD SOT457 SC-74; TSOP6 2.9 x 1.5 x 1 5 Unidirectional 5 165 220 30 0.2
