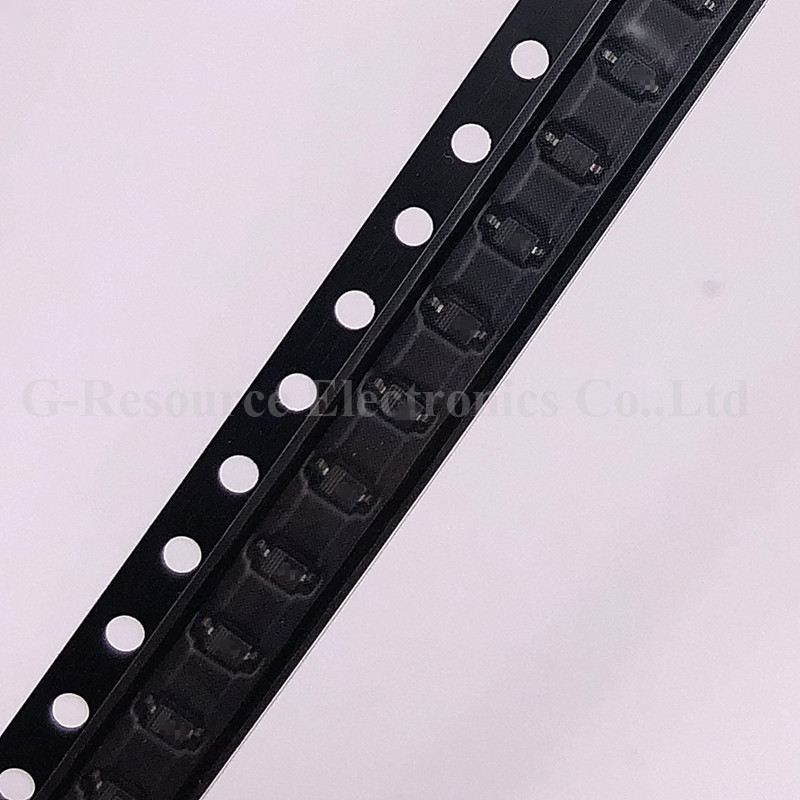

High Power Smd Zener Diode SOD-323 200mW ±5% Surface Mount BZT52C2V4S-43VS

  • High Power Smd Zener Diode SOD-323 200mW ±5% Surface Mount BZT52C2V4S-43VS
  • High Power Smd Zener Diode SOD-323 200mW ±5% Surface Mount BZT52C2V4S-43VS
  • High Power Smd Zener Diode SOD-323 200mW ±5% Surface Mount BZT52C2V4S-43VS
Place of Origin Malaysia / CHINA
Brand Name NXP/LRC/FSC/ON/MCC/DIODE/VISHAY/Thinkchip
Model Number BZT52C
Minimum Order Quantity 100PCS
Price negotiable

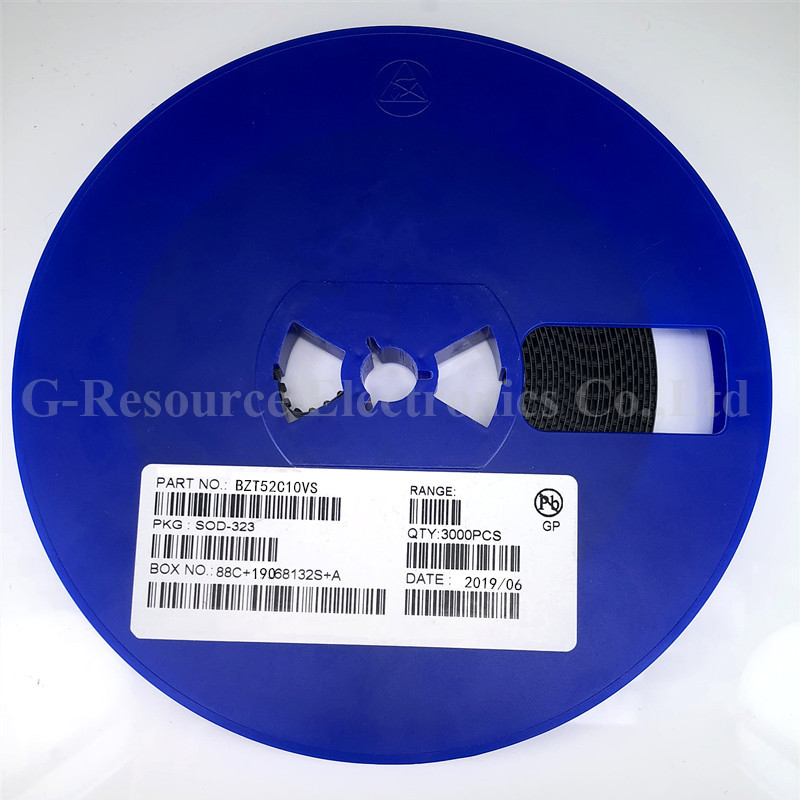

Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
TYPE BAT52C10VS Package SOD-323
Nom(V) 10V Tolerance ±5%
Power - Max 200mW ZZT(Ω) 20
ZZK(Ω) 150 Part Status Active
High Light

smd zener diode

,

high speed zener diode
Leave a Message
Product Description

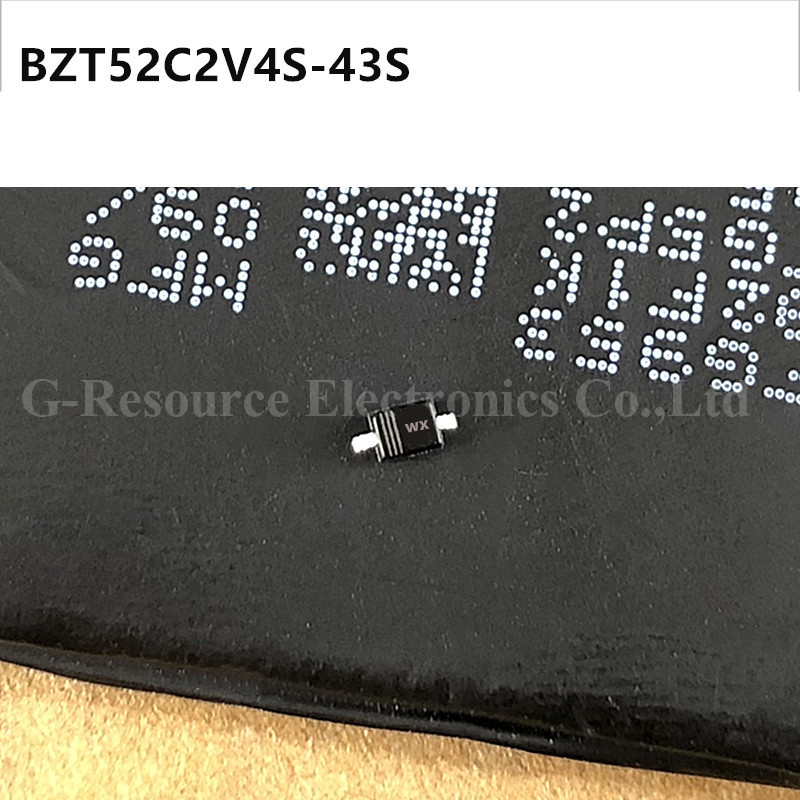

BZT52C2V4S-43S smd zener diode SOD-323 high power zener diode 200mW ±5% Surface Mount

BZT52C10S SOD-323 10 9.4 10.6 20 150 0.2 200
BZT52C12S SOD-323 12 11.4 12.7 25 150 0.1 200
BZT52C13S SOD-323 13 12.4 14.1 30 170 0.1 200
BZT52C15S SOD-323 15 13.8 15.6 30 200 0.1 200
BZT52C16S SOD-323 16 15.3 17.1 40 200 0.1 200
BZT52C18S SOD-323 18 16.8 19.1 45 225 0.1 200
BZT52C20S SOD-323 20 18.8 21.2 55 225 0.1 200
BZT52C22S SOD-323 22 20.8 23.3 55 250 0.1 200
BZT52C24S SOD-323 24 22.8 25.6 70 250 0.1 200
BZT52C27S SOD-323 27 25.1 28.9 80 300 0.1 200
BZT52C2V0S SOD-323 2 1.91 2.09 - 600 150 200
BZT52C2V4S SOD-323 2.4 2.2 2.6 100 600 50 200
BZT52C2V7S SOD-323 2.7 2.5 2.9 95 600 20 200
BZT52C30S SOD-323 30 28 32 80 300 0.1 200
BZT52C11S SOD-323 11 10.4 11.6 20 150 0.1 200
BZT52C33S SOD-323 33 31 35 80 325 0.1 200
BZT52C36S SOD-323 36 34 38 90 350 0.1 200
BZT52C39S SOD-323 39 37 41 130 350 0.1 200
BZT52C3V0S SOD-323 3 2.8 3.2 95 600 10 200
BZT52C3V3S SOD-323 3.3 3.1 3.5 95 600 5 200
BZT52C3V6S SOD-323 3.6 3.4 3.8 90 600 5 200
BZT52C3V9S SOD-323 3.9 3.7 4.1 90 600 3 200
BZT52C4V3S SOD-323 4.3 4 4.6 90 600 3 200
BZT52C4V7S SOD-323 4.7 4.4 5 80 500 3 200
BZT52C5V1S SOD-323 5.1 4.8 5.4 60 480 2 200
BZT52C5V6S SOD-323 5.6 5.2 6 40 400 1 200
BZT52C6V2S SOD-323 6.2 5.8 6.6 10 150 3 200
BZT52C6V8S SOD-323 6.8 6.4 7.2 15 80 2 200
BZT52C7V5S SOD-323 7.5 7 7.9 15 80 1 200
BZT52C8V2S SOD-323 8.2 7.7 8.7 15 80 0.7 200
BZT52C9V1S SOD-323 9.1 8.5 9.6 15 100 0.5 200

The Zener diode has a well-defined reverse-breakdown voltage, at which it starts conducting current, and continues operating continuously in the reverse-bias mode without getting damaged. Additionally, the voltage drop across the diode remains constant over a wide range of voltages, a feature that makes Zener diodes suitable for use in voltage regulation.Zener Diode is a silicon semiconductor device that permits current to flow in either a forward or reverse direction. The diode consists of a special, heavily doped p-n junction, designed to conduct in the reverse direction when a certain specified voltage is reached.

Zener diode operation

The Zener diode operates just like the normal diode when in the forward-bias mode, and has a turn-on voltage of between 0.3 and 0.7 V. However, when connected in the reverse mode, which is usual in most of its applications, a small leakage current may flow. As the reverse voltage increases to the predetermined breakdown voltage (Vz), a current starts flowing through the diode. The current increases to a maximum, which is determined by the series resistor, after which it stabilizes and remains constant over a wide range of applied voltage.
