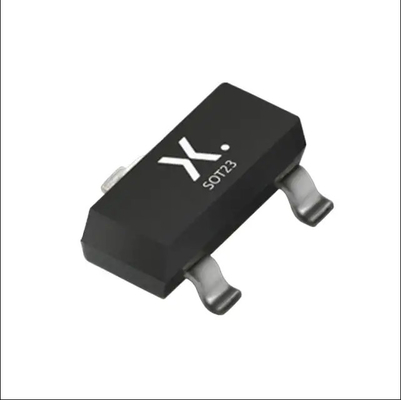

Smd Diode Zener 15 Volt With Reverse Breakdown Voltage SOT-23 BZX84-C15
| Place of Origin | Malaysia / CHINA |
|---|---|
| Brand Name | NXP/LRC/FSC/ON/MCC/DIODE/VISHAY/Thinkchip |
| Model Number | BZX84-C15 |
| Minimum Order Quantity | 100PCS |
| Price | negotiable |
| Packaging Details | Tape & Reel (TR) / Cut Tape (CT) |
| Delivery Time | 1-2 working days |
| Payment Terms | T/T, Western Union,paypal,MoneyGram |
| Supply Ability | 9,900,000 pcs |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Package | SOT-23 | Nom(V) | 15V |
|---|---|---|---|
| Tolerance | ±5% | Power - Max | 350mW |
| ZZK(Ω) | 150 | ZZT(Ω) | 20 |
| Part Status | Active | TYPE | BZX84C |
| High Light | smd zener diode,high speed zener diode |
||
Product Description
BZX84C15V BZX84-C15
BZX84C2V3-43 smd zener diode SOT-23 BZX84C high power zener diode 350mW
Zener Diode is a silicon semiconductor device that permits current to flow in either a forward or reverse direction. The diode consists of a special, heavily doped p-n junction, designed to conduct in the reverse direction when a certain specified voltage is reached.
The Zener diode has a well-defined reverse-breakdown voltage, at which it starts conducting current, and continues operating continuously in the reverse-bias mode without getting damaged. Additionally, the voltage drop across the diode remains constant over a wide range of voltages, a feature that makes Zener diodes suitable for use in voltage regulation.
Zener diode operation
The Zener diode operates just like the normal diode when in the forward-bias mode, and has a turn-on voltage of between 0.3 and 0.7 V. However, when connected in the reverse mode, which is usual in most of its applications, a small leakage current may flow. As the reverse voltage increases to the predetermined breakdown voltage (Vz), a current starts flowing through the diode. The current increases to a maximum, which is determined by the series resistor, after which it stabilizes and remains constant over a wide range of applied voltage.
| BZX84C10 | SOT-23 | 10 | 9.4 | 10.6 | 20 | 150 | 0.2 | 350 |
| BZX84C11 | SOT-23 | 11 | 10.4 | 11.6 | 20 | 150 | 0.1 | 350 |
| BZX84C12 | SOT-23 | 12 | 11.4 | 12.7 | 25 | 150 | 0.1 | 350 |
| BZX84C13 | SOT-23 | 13 | 12.4 | 14.1 | 30 | 170 | 0.1 | 350 |
| BZX84C15 | SOT-23 | 15 | 13.8 | 15.6 | 30 | 200 | 0.1 | 350 |
| BZX84C16 | SOT-23 | 16 | 15.3 | 17.1 | 40 | 200 | 0.1 | 350 |
| BZX84C18 | SOT-23 | 18 | 16.8 | 19.1 | 45 | 225 | 0.1 | 350 |
| BZX84C20 | SOT-23 | 20 | 18.8 | 21.2 | 55 | 225 | 0.1 | 350 |
| BZX84C22 | SOT-23 | 22 | 20.8 | 23.3 | 55 | 250 | 0.1 | 350 |
| BZX84C24 | SOT-23 | 24 | 22.8 | 25.6 | 70 | 250 | 0.1 | 350 |
| BZX84C27 | SOT-23 | 27 | 25.1 | 28.9 | 80 | 300 | 0.1 | 350 |
| BZX84C2V4 | SOT-23 | 2.4 | 2.2 | 2.6 | 100 | 600 | 50 | 350 |
| BZX84C2V7 | SOT-23 | 2.7 | 2.5 | 2.9 | 100 | 600 | 20 | 350 |
| BZX84C30 | SOT-23 | 30 | 28 | 32 | 80 | 300 | 0.1 | 350 |
| BZX84C33 | SOT-23 | 33 | 31 | 35 | 80 | 325 | 0.1 | 350 |
| BZX84C36 | SOT-23 | 36 | 34 | 38 | 90 | 350 | 0.1 | 350 |
| BZX84C39 | SOT-23 | 39 | 38 | 41 | 130 | 350 | 0.1 | 350 |
| BZX84C3V0 | SOT-23 | 3 | 2.8 | 3.2 | 95 | 600 | 10 | 350 |
| BZX84C3V3 | SOT-23 | 3.3 | 3.1 | 3.5 | 95 | 600 | 5 | 350 |
| BZX84C3V6 | SOT-23 | 3.6 | 3.4 | 3.8 | 90 | 600 | 5 | 350 |
| BZX84C3V9 | SOT-23 | 3.9 | 3.7 | 4.1 | 90 | 600 | 3 | 350 |
| BZX84C4V3 | SOT-23 | 4.3 | 4 | 4.6 | 90 | 600 | 3 | 350 |
| BZX84C4V7 | SOT-23 | 4.7 | 4.4 | 5 | 80 | 500 | 3 | 350 |
| BZX84C5V1 | SOT-23 | 5.1 | 4.8 | 5.4 | 60 | 480 | 2 | 350 |
| BZX84C5V6 | SOT-23 | 5.6 | 5.2 | 6 | 40 | 400 | 1 | 350 |
| BZX84C6V2 | SOT-23 | 6.2 | 5.8 | 6.6 | 10 | 150 | 3 | 350 |
| BZX84C6V8 | SOT-23 | 6.8 | 6.4 | 7.2 | 15 | 80 | 2 | 350 |
| BZX84C7V5 | SOT-23 | 7.5 | 7 | 7.9 | 15 | 80 | 1 | 350 |
| BZX84C8V2 | SOT-23 | 8.2 | 7.7 | 8.7 | 15 | 80 | 0.7 | 350 |
| BZX84C9V1 | SOT-23 | 9.1 | 8.5 | 9.6 | 15 | 100 | 0.5 | 350 |
G-Resource Electronics Co., Ltd, as the preferred supplier of the world well-known enterprises, take strict quality control as the key to our success. G-Resource Electronics Co., Ltd has all along been committed to the "Zero Defect" quality management system and we have established a comprehensive quality management system, from supply chain management to single transaction monitoring, from suppliers grading system to quality inspection procedures. At the same time, we also has the excellent services of electronics field : Spot Buy Service; PPV Projects;BOM Kitting;Excess Liquidation;Value-Add Service;All-in-One Package Service. And also, we ensure the fast delivery of all our customers,we not only has closed cooperation relationship with international express :UPS,DHL,FEDEX,TNT ect but also has the great support of District logistics dedicated line.We confident that you will be satisfy with us once you start to cooperate with us. We stay here and waiting you to be our partner!
Contact us if you need more detail or quotation of these item. info@gr-ele.com
Pls kindly check the below part number of same series.
