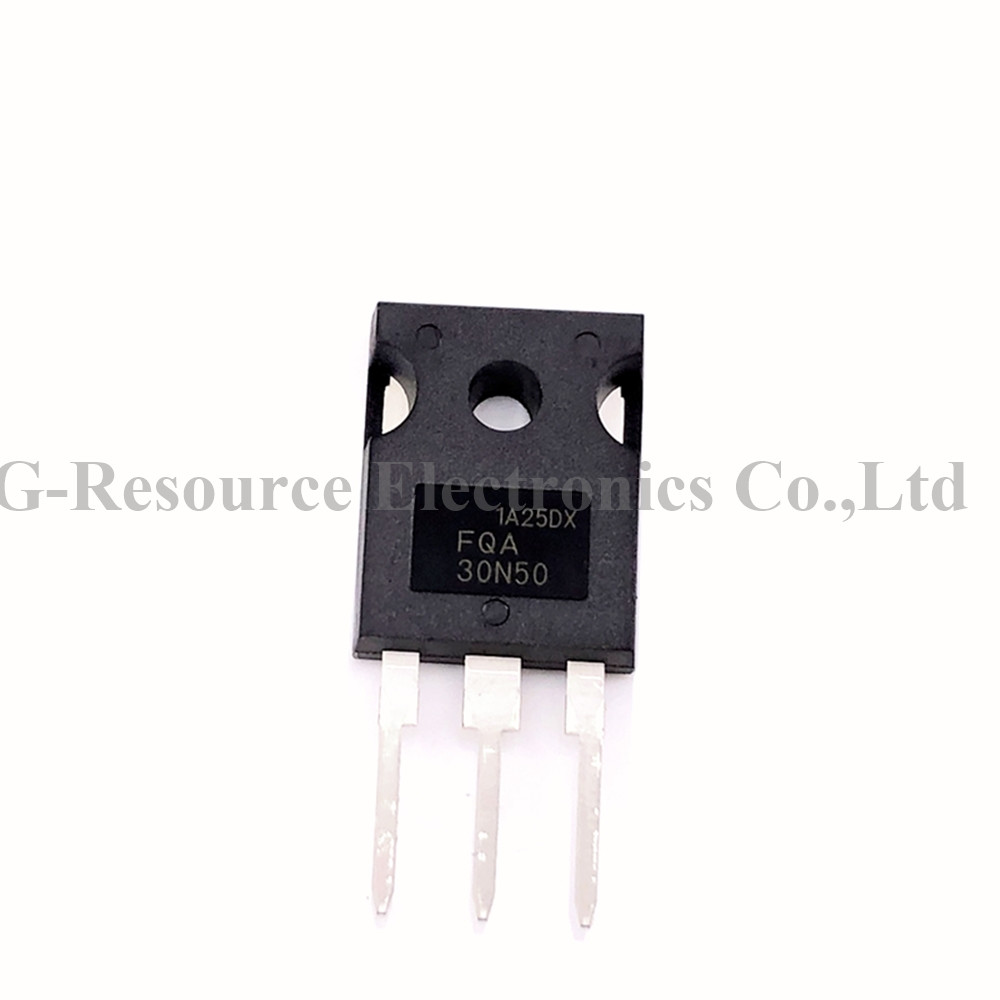

N Channel 500V 30A FQA30N50 smd MOSFET transistor

  • N Channel 500V 30A FQA30N50 smd MOSFET transistor
  • N Channel 500V 30A FQA30N50 smd MOSFET transistor
Place of Origin USA
Brand Name FAIRCHILD
Model Number 30N50
Minimum Order Quantity 20PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
NO. 30N50 Brand FAIRCHILD
Current - Continuous Drain (Id) @ 25°C 30A Drain To Source Voltage (Vdss) 500
Package TO-247 Polarity N
Highlight

30A Through Hole MOSFET Transistor

,

FQA30N50
Leave a Message
Product Description

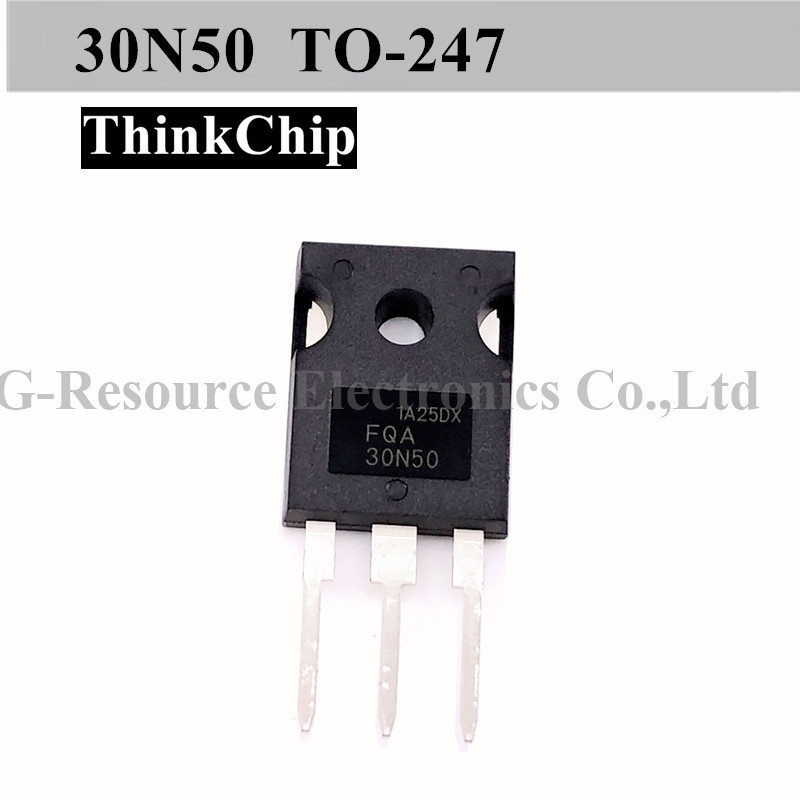

FQA30N50 MOSFET Power Transistor N channel 30N50 TO247 IRF30N50



Product Attribute Attribute Value
Manufacturer: FAIRCHILD
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 500 V
Id - Continuous Drain Current: 30 A
Rds On - Drain-Source Resistance: 165 mOhms
Vgs - Gate-Source Voltage: 30 V
Vgs th - Gate-Source Threshold Voltage: 5 V
Qg - Gate Charge: 70 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 460 W
Channel Mode: Enhancement
Tradename: PolarHV
Packaging: Tube
Configuration: Single
Height: 21.46 mm
Length: 16.26 mm
Series: IXTH30N50
Transistor Type: 1 N-Channel
Type: PolarHV Power MOSFET
Width: 5.3 mm
Forward Transconductance - Min: 17 S
Fall Time: 21 ns
Product Type: MOSFET
Rise Time: 27 ns
Factory Pack Quantity: 30
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 75 ns
Typical Turn-On Delay Time: 25 ns
Unit Weight: 0.229281 oz




N Channel 500V 30A FQA30N50 smd MOSFET transistor 0N Channel 500V 30A FQA30N50 smd MOSFET transistor 1N Channel 500V 30A FQA30N50 smd MOSFET transistor 2
