600V 6.5A FQPF20N50C TO-220 MOSFET Power Transistor

  • 600V 6.5A FQPF20N50C TO-220 MOSFET Power Transistor
  • 600V 6.5A FQPF20N50C TO-220 MOSFET Power Transistor
  • 600V 6.5A FQPF20N50C TO-220 MOSFET Power Transistor
Place of Origin USA
Brand Name FAIRCHILD
Model Number 20N50C
Minimum Order Quantity 20PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
NO. 20N50C Brand FAIRCHILD
Current - Continuous Drain (Id) @ 25°C 20A Drain To Source Voltage (Vdss) 500
Package TO-220 Polarity N
Highlight

6.5A MOSFET Transistor

,

FQPF20N50C
Leave a Message
Product Description

FQPF20N50C 20N50C TO-220 MOSFET Power Transistor 500V 20A FAIRCHILD



Product Attribute Attribute Value
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 500 V
Id - Continuous Drain Current: 20 A
Rds On - Drain-Source Resistance: 270 mOhms
Vgs - Gate-Source Voltage: 10 V
Vgs th - Gate-Source Threshold Voltage: 3 V
Qg - Gate Charge: 65 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 250 mW
Channel Mode: Enhancement
Packaging: Tube
Configuration: Single
Height: 20.82 mm
Length: 15.87 mm
Transistor Type: 1 N-Channel
Width: 5.31 mm
Brand: Vishay / Siliconix
Forward Transconductance - Min: 6.4 S
Fall Time: 44 ns
Product Type: MOSFET
Rise Time: 27 ns
Factory Pack Quantity: 500
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 32 ns
Typical Turn-On Delay Time: 80 ns
Unit Weight: 0.211644 oz

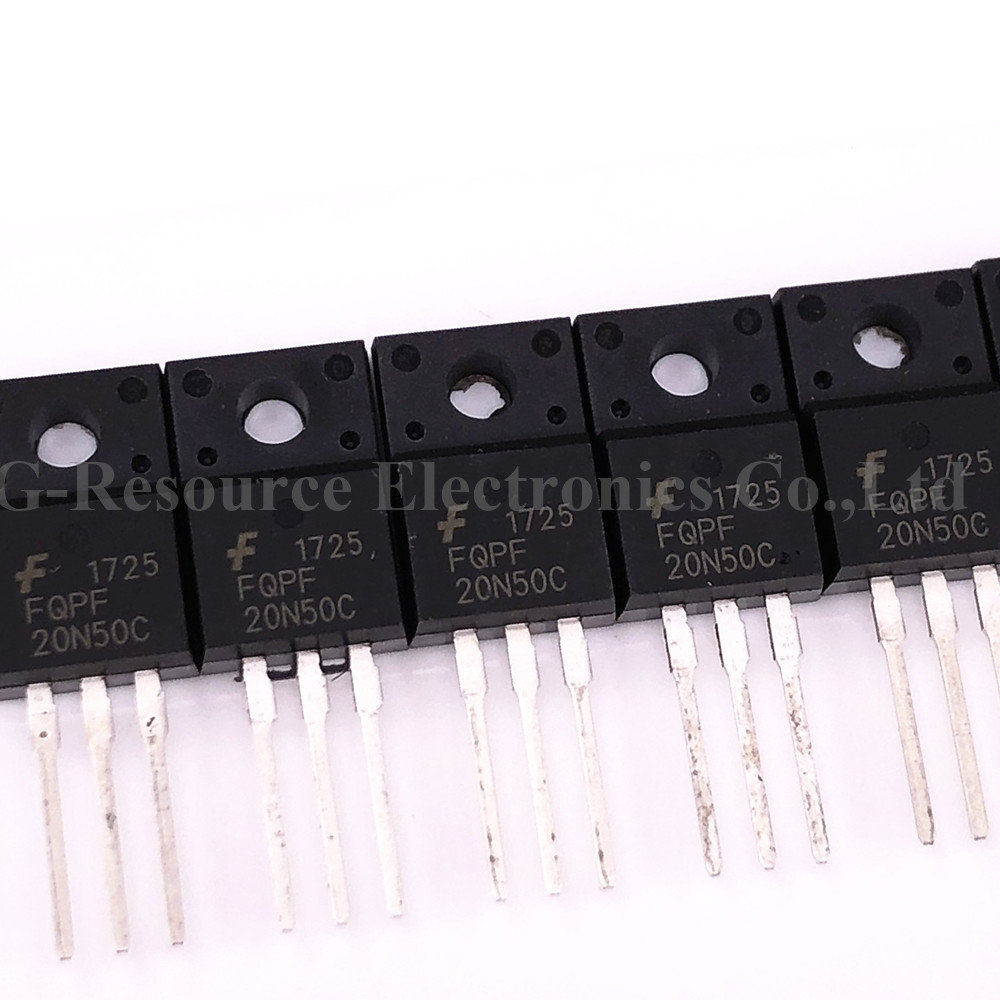

600V 6.5A FQPF20N50C TO-220 MOSFET Power Transistor 0

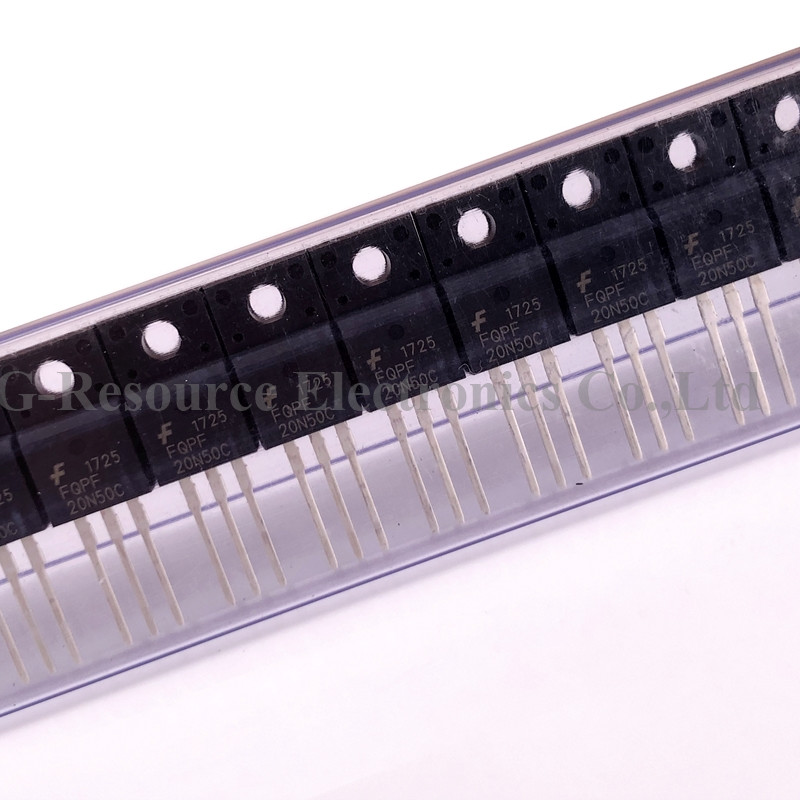

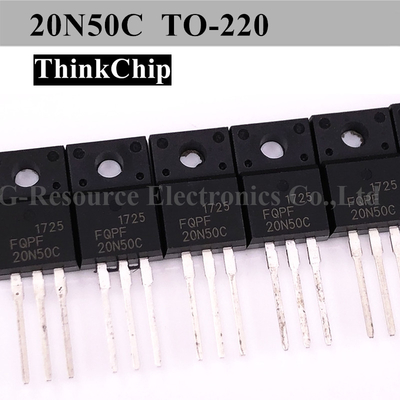

600V 6.5A FQPF20N50C TO-220 MOSFET Power Transistor 1600V 6.5A FQPF20N50C TO-220 MOSFET Power Transistor 2

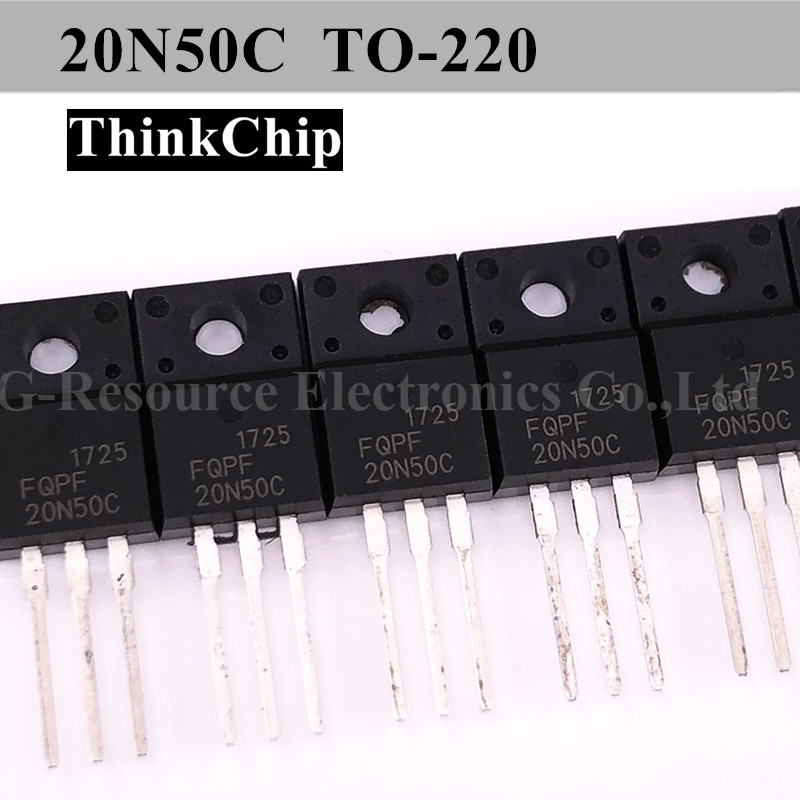

600V 6.5A FQPF20N50C TO-220 MOSFET Power Transistor 3
