NJM4558D SOP8 4558 SMD 4558D JRC44558 Power Voltage Regulator

  • NJM4558D SOP8 4558 SMD 4558D JRC44558 Power Voltage Regulator
  • NJM4558D SOP8 4558 SMD 4558D JRC44558 Power Voltage Regulator
Place of Origin MALAYSIA
Brand Name JRC/TI/THINKCHIP
Model Number 4558D
Minimum Order Quantity 100PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 working days
Payment Terms T/T, Western Union,paypal,MoneyGram
Supply Ability 9,900,000 pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

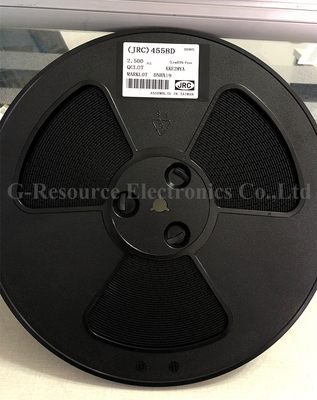

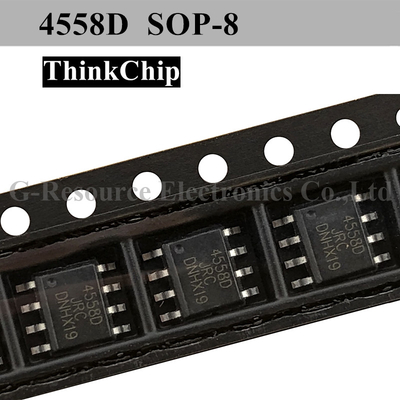

TYPE 4558D Package SOP8
REEL 2500/REEL DATE CODE TAIWAN
Highlight

2500/ reel smd regulator ic

,

3mhz switching voltage regulator
Leave a Message
Product Description

JRC4558D NJM4558D SOP8 4558 SMD 4558D JRC44558 Voltage Regulator ICIn Stock

Contact us if you need more detail or quotation of these item. info@gr-ele.com


Product Attribute Attribute Value
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Number of Channels: 2 Channel
Supply Voltage - Max: 30 V
GBP - Gain Bandwidth Product: 3 MHz
SR - Slew Rate: 1.7 V/us
Vos - Input Offset Voltage: 6 mV
Supply Voltage - Min: 10 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Ib - Input Bias Current: 500 nA
Operating Supply Current: 1.25 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 70 dB to 90 dB
en - Input Voltage Noise Density: 8 nV/sqrt Hz
Series: 4558
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Amplifier Type: General Purpose Amplifier
Height: 1.58 mm
Length: 4.9 mm
Product: Operational Amplifiers
Supply Type: Single, Dual
Technology: Bipolar
Width: 3.91 mm
Brand: Texas Instruments
Dual Supply Voltage: +/- 9 V, +/- 12 V
Maximum Dual Supply Voltage: +/- 15 V
Minimum Dual Supply Voltage: +/- 5 V
Operating Supply Voltage: 10 V to 30 V, +/- 5 V to +/- 15 V
Product Type: Op Amps - Operational Amplifiers
Factory Pack Quantity: 2500
Subcategory: Amplifier ICs
Voltage Gain dB: 109.54 dB
Unit Weight: 0.002561 oz



NJM4558D SOP8 4558 SMD 4558D JRC44558 Power Voltage Regulator 0NJM4558D SOP8 4558 SMD 4558D JRC44558 Power Voltage Regulator 1

NJM4558D SOP8 4558 SMD 4558D JRC44558 Power Voltage Regulator 2
