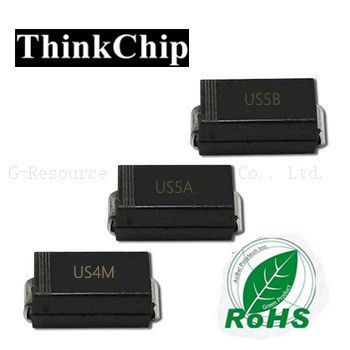

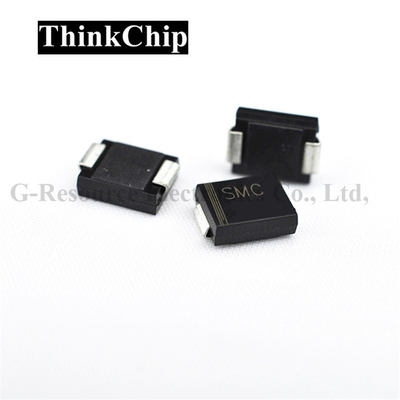

DO-214AB SMC 50V 100A Fast Recovery Diode US5A US5B US5D US5G US5J US5K US5M

  • DO-214AB SMC 50V 100A Fast Recovery Diode US5A US5B US5D US5G US5J US5K US5M
  • DO-214AB SMC 50V 100A Fast Recovery Diode US5A US5B US5D US5G US5J US5K US5M
  • DO-214AB SMC 50V 100A Fast Recovery Diode US5A US5B US5D US5G US5J US5K US5M
Place of Origin CHINA
Brand Name THINKCHIP
Model Number US5A US5B US5D US5G US5J US5K US5M
Minimum Order Quantity 100PCS
Price negotiable
Packaging Details Tape & Reel (TR) / Cut Tape (CT)
Delivery Time 1-2 WORK DAYS
Payment Terms T/T, Western Union,paypal, MoneyGram
Supply Ability 9,900,000 pcs/weekly

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
TYPE US5A Package SMC
IR(uA) 5 VF(V) 1
VRRM(V) 50 IFSM(A) 100
Trr(ns) 50 IO(A) 1
Highlight

high power rectifier diode

,

surface mount diode
Leave a Message
Product Description

US5A US5B US5D US5G US5J US5K US5M Fast Recorvery Diode DO-214AB SMC 50V100A



FEATURES
 Glass passivated junction
 Low reverse leakage current
 Low forward voltage drop



 Highcurrent capability
 Surface Mount device
MECHANICAL DATA
 Case: SMC(DO-214AB)
 Case Material: Molded Plastic. UL flammability
 Classification Rating: 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Weight: 0.21 grams (approximate)





other items

Type Package VRRM(V) IO(A) IFSM(A) Trr(ns) VF(V) IR(uA)
US5A SMC 50 5 100 50 1 10
US5B SMC 100 5 100 50 1 10
US5D SMC 200 5 100 50 1 10
US5G SMC 400 5 100 50 1.4 10
US5J SMC 600 5 100 75 1.7 10
US5K SMC 800 5 100 75 1.7 10
US5M SMC 1000 5 100 75 1 10



DO-214AB SMC 50V 100A Fast Recovery Diode US5A US5B US5D US5G US5J US5K US5M 0DO-214AB SMC 50V 100A Fast Recovery Diode US5A US5B US5D US5G US5J US5K US5M 1DO-214AB SMC 50V 100A Fast Recovery Diode US5A US5B US5D US5G US5J US5K US5M 2DO-214AB SMC 50V 100A Fast Recovery Diode US5A US5B US5D US5G US5J US5K US5M 3

DO-214AB SMC 50V 100A Fast Recovery Diode US5A US5B US5D US5G US5J US5K US5M 4DO-214AB SMC 50V 100A Fast Recovery Diode US5A US5B US5D US5G US5J US5K US5M 5
